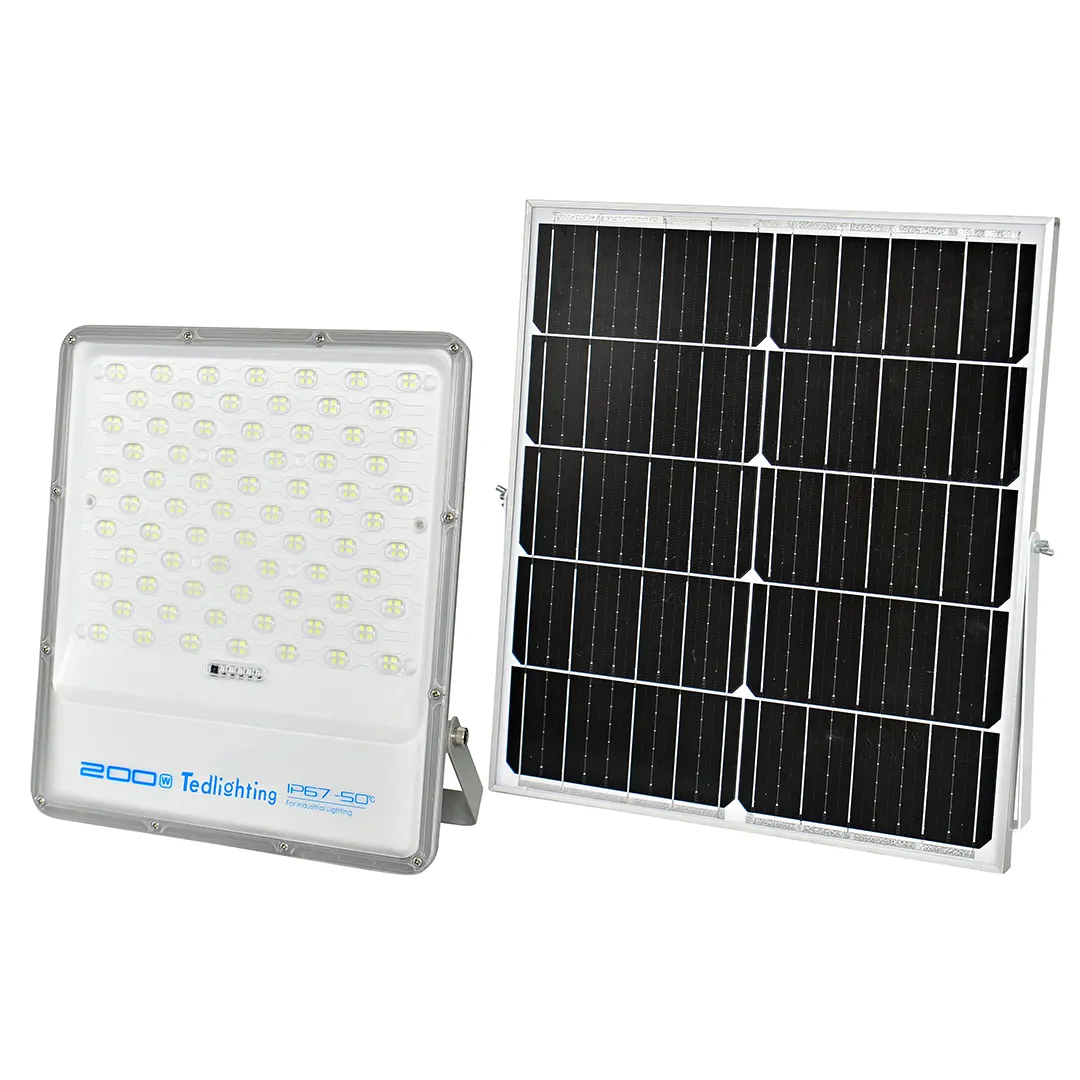

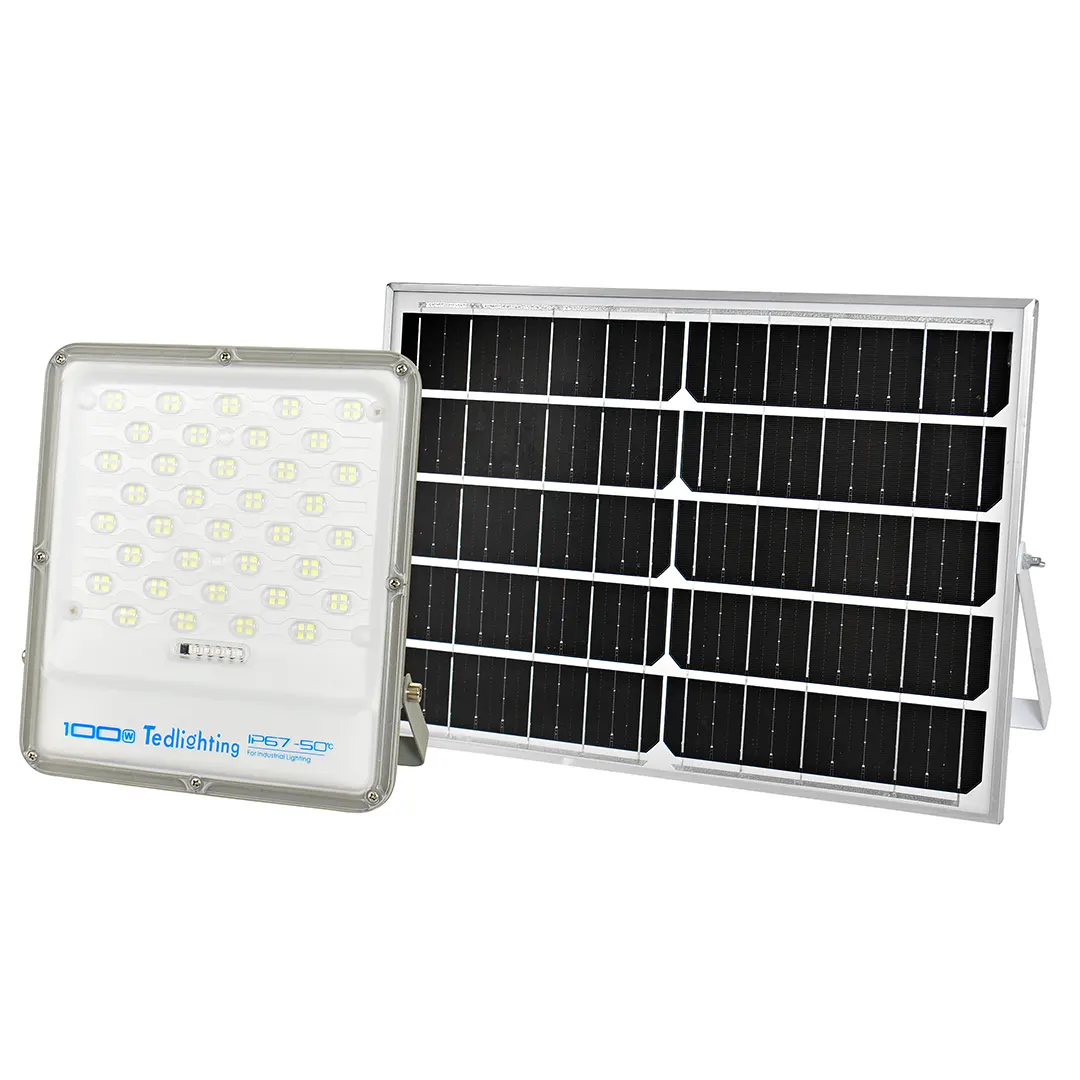

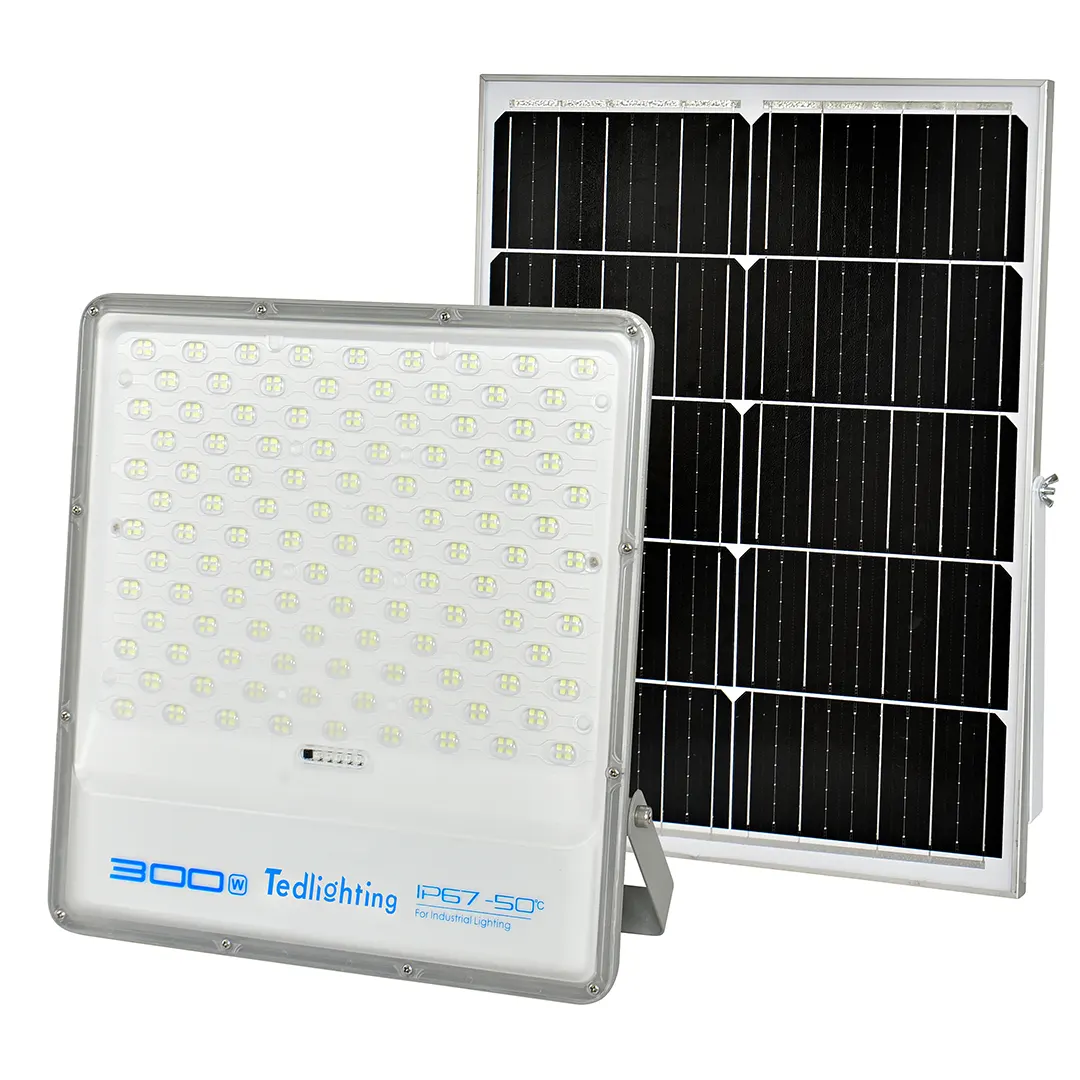

Clio Series Solar LED Flood Light
All-in-one solar street lighting for roads, communities, parking areas, and infrastructure projects.
The Arden Series is a project-grade all-in-one solar LED street light designed for reliable outdoor lighting where grid connection is costly, unstable, or unavailable. It integrates a high-efficiency LED module, monocrystalline solar panel, LiFePO₄ battery, and intelligent controller into one compact system for faster installation and lower maintenance.
Built for practical project use, the Arden Series can be selected according to installation height, lighting requirement, project location, and local sunlight conditions.
Available in 3 configurations — see Technical Specifications below
Send us your project location, pole height, road width, quantity, and required lighting hours. Our team will recommend a suitable configuration.
Why Choose Arden Series?
Arden Series is designed for projects that require fast deployment, stable lighting performance, and lower long-term operating cost. Compared with conventional grid street lights, it does not require trenching, cabling, or electricity connection.
Technical Specifications
Comprehensive technical parameters for project planning and configuration.
| Specification |
TH-AIOLS-1047 3 Modules |
TH-AIOLS-1048 4 Modules |
TH-AIOLS-1049 5 Modules |
TH-AIOLS-1050 6 Modules |
|---|---|---|---|---|
| Power Options | 240W | 320W | 400W | 480W |
| Battery Capacity | 3.2V/75Ah/240WH | 3.2V/90Ah/288WH | 3.2V/150Ah/480WH | 12.8V/60Ah/768WH |
| Solar Panel | 6V/80W | 18V/100W | 18V/120W | 18V/140W |
| Solar Panel Efficiency | > 21% | > 21% | > 21% | > 21% |
| Lens Materials | PC UV Resistant and Fire-Resistant | PC UV Resistant and Fire-Resistant | PC UV Resistant and Fire-Resistant | PC UV Resistant and Fire-Resistant |
| LED Type&Qty | 3030/240PCS*1W | 3030/320PCS*1W | 3030/400PCS*1W | 3030/480PCS*1W |
| Luminous efficiency | 200lm/W | 210lm/W | 220lm/W | 200lm/W |
| Housing Color | Grey Silver | Grey Silver | Grey Silver | Grey Silver |
| Dimension | L1190*W430*H50mm | L1470*W430*H50mm | L1530*W430*H50mm | L1715*W435*H50mm |
| Waterproof Rating | IP66 | IP66 | IP66 | IP66 |
| Lighting Duration | 24 – 36 hrs | 24 – 36 hrs | 24 – 36 hrs | 24 – 36 hrs |
| Color Temperature | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K | 3000K/4000K/6000K |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Solar Panel Type | Monocrystalline | Monocrystalline | Monocrystalline | Monocrystalline |
| Housing Material | Aluminum+Galvanized Bracket | Aluminum+Galvanized Bracket | Aluminum+Galvanized Bracket | Aluminum+Galvanized Bracket |
| Mounting Height | 6m – 7m | 7m – 8m | 8m – 9m | 10-11m |
| Control Mode | Sensor + Remote + Timing | Sensor + Remote + Timing | Sensor + Remote + Timing | Sensor + Remote + Timing |
| Working Temperature | -20°C to +60°C | -20°C to +60°C | -20°C to +60°C | -20°C to +60°C |
* Final specification can be adjusted according to project requirement, local sunlight conditions, installation height, and lighting standard.
Key Features & Benefits
Engineered for reliability, efficiency, and long-term cost savings in demanding outdoor environments.
High Efficiency LED Lighting
180 lm/W efficiency with precision optical lens design for road illumination.
Long-Life LiFePO₄ Battery
Stable battery performance with BMS protection for outdoor solar lighting use.
Monocrystalline Solar Panel
High-efficiency solar charging system designed for daily outdoor operation.
IP66 Outdoor Protection
Dust and water protection for long-term use in outdoor environments.
Engineering Details
Premium components designed for durability, efficiency, and easy installation.
Adjustable Angle
- Built-in adjustable mounting bracket
- Compatible with standard round poles
- Flexible tilt angle adjustment
- Reinforced structure for long-term stability
High Brightness LED
- High-brightness SMD LED modules
- Optimized optical layout
- Even light distribution
- Efficient heat dissipation design
High Efficency Solar Panel
- One-piece aluminum body
- Excellent thermal management
- Corrosion-resistant outdoor coating
- Compact all-in-one structure
Applications
Versatile solar lighting solutions for diverse infrastructure requirements.
Roads and Streets
Suitable for urban roads, village roads, secondary roads, and internal roadways.
Residential Communities
Practical for community streets, pathways, and neighborhood access roads.
Industrial and Logistics Areas
Suitable for factory parks, warehouse zones, and internal traffic roads.
Parking Areas
Can be used for commercial, public, or community parking lots where trenching is not preferred.
Municipal Projects
Appropriate for local roads, community infrastructure, and public development areas.
Off-Grid Areas
A reliable option where grid connection is costly, unstable, or unavailable.
What’s Included
Standard package components for project supply and installation.
Certifications & Warranty
Project documentation and certifications can be provided according to the confirmed model and order requirement.
CE Certified
RoHS Compliant
ISO 9001
Quality Control
Frequently Asked Questions
Common questions for contractors, EPC companies, distributors, and project buyers.
Request Pricing & Project Solution
For EPC & Project Quotations:
Please provide project location, pole height, quantity, and required lighting hours for accurate configuration and pricing.
