Decorative-meets-functional post-top luminaires for parks, plazas and pedestrian zones. Classic lantern silhouette, modern LED engine, and a finish that suits any townscape.
Efficacy
Lifespan
Warranty
Distribution
Shared technical parameters across every model in the series.
| Input Voltage(V) | AC85-305V |
| Color | 3000 / 4000 / 6000K |
| Body Finish | Grey |
| CRI | >70 |
| PF | >0.95 |
| SPF | 4 / 6KV / 10KV |
| Lamp Body Material | Die-cast Aluminum + Anti-UV PC Lens |
| Lifespan | 50,000 hours |
| IP Level | IP65 |
Comprehensive technical parameters for project planning and configuration.
|
Specification
|
Post Top 30W
30 W |
Post Top 50W
50W |
Post Top 80W
80W |
Post Top 100W
100W |
Post Top 120W
120W |
Post Top 150W
150W |
|---|---|---|---|---|---|---|
| Power | 30W | 50W | 80W | 100W | 120W | 150W |
| Luminous Flux | 4,500 lm | 7,500 lm | 12,000 lm | 15,000 lm | 18,000 lm | 22,500 lm |
| Efficacy | 150 lm/W | 150 lm/W | 150 lm/W | 150 lm/W | 150 lm/W | 150 lm/W |
| Beam Angle | Type V | Type V | Type III / V | Type III / V | Type III / V | Type II / III |
| Weight | 3.4 kg | 4.1 kg | 5.2 kg | 6.0 kg | 6.8 kg | 7.6 kg |
| Dimensions | Ø380 × 420 mm | Ø420 × 460 mm | Ø460 × 500 mm | Ø500 × 540 mm | Ø520 × 560 mm | Ø560 × 600 mm |
| Application | Garden paths, residential driveways | Park walkways, courtyards, plazas | Pedestrian zones, campus pathways | Town squares, commercial entrances | Heritage districts, boulevards | Wide promenades, scenic avenues |
Project Resources
Everything tender engineers, EPCs and distributors need to specify, install and maintain the series.
Classic forms, modern LED engine
Sealed against rain, dust, vandalism
Dusk-to-dawn input on every fixture
Even, glare-free pedestrian lighting
Black, bronze, graphite, custom RAL
Fits standard 60-76mm post tenons

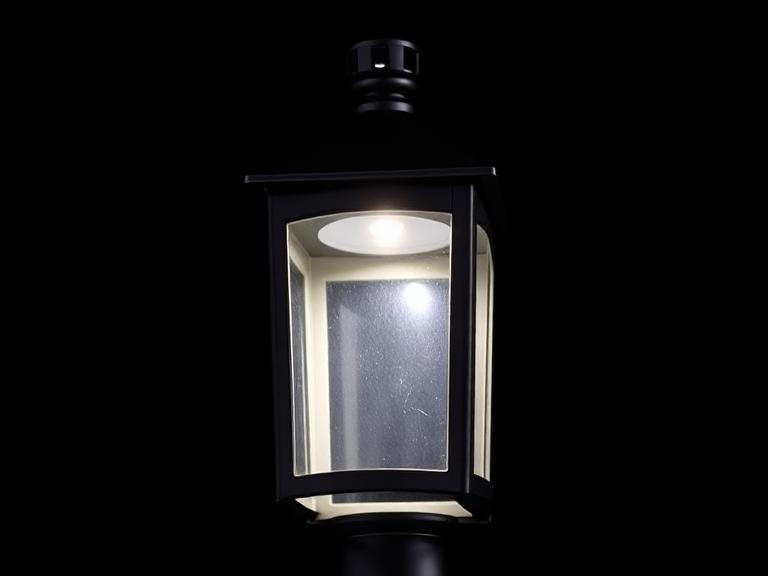

Multiple lantern shapes — from traditional Victorian to contemporary geometric — all engineered around the same field-replaceable LED engine.

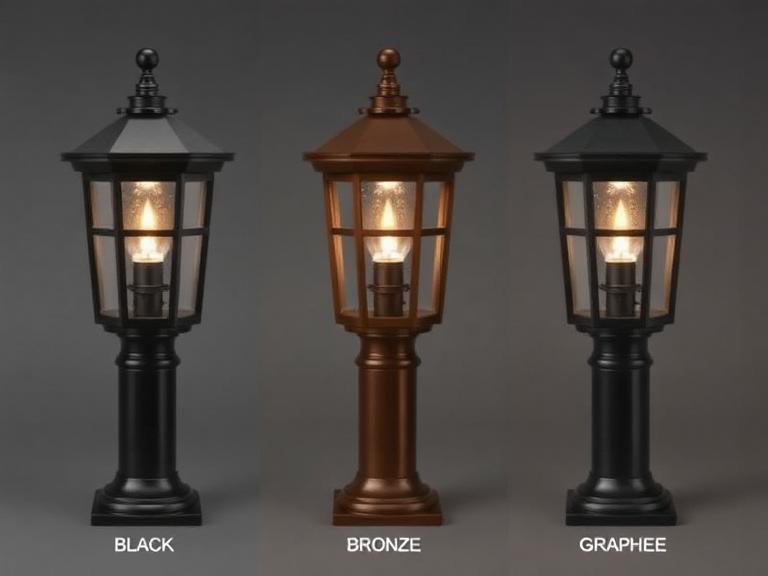

Standard powder-coated black, bronze and graphite — plus any RAL colour to match heritage palettes or municipal specifications.

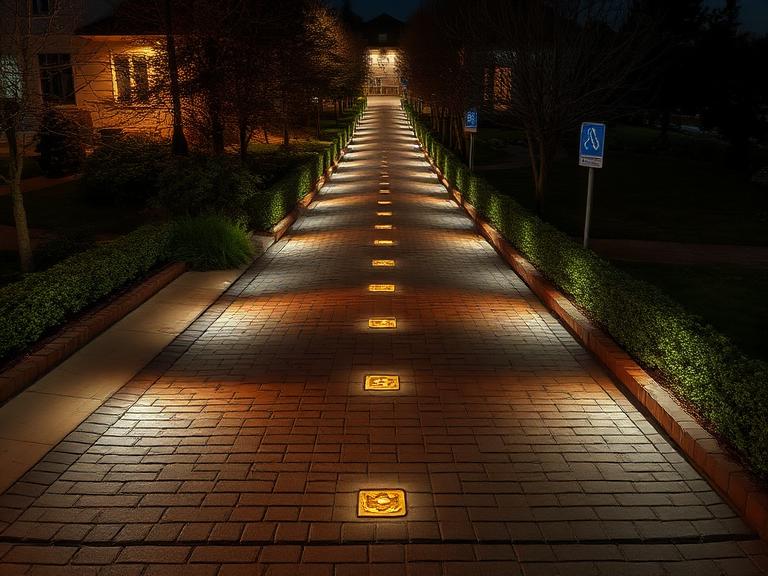

Modern LED optics deliver even pedestrian-level illumination without spill into the night sky — meeting Dark-Sky and IDA requirements.
Specified by city planners, landscape architects and heritage conservation teams.
Warm-white Type V distribution that flatters landscaping and creates inviting evening environments for visitors.
Classic lantern silhouettes with modern LED engines — preserve the character of historic streetscapes while cutting energy 70%.
Sleek contemporary fittings for university grounds, corporate campuses and modern public squares.
Countries
Years Experience
Distribution Partners
Standard Warranty
Project Inquiry
Share your road class, mounting height, pole spacing and target lux — our lighting engineers will return a complete photometric layout, BOQ and quotation within 24 hours.
Response within 24 hours on business days
Free photometric layout (.IES) for qualified projects
Send your road details → Get photometric layout + quotation in 24 hours
